The ESAB® EMP 210 is a 200 amp portable multiprocess welding package that performs MIG, Stick and DC TIG welding. The EMP 210 operates on either 120 volt or 230 volt input power and comes complete with adapter cord. Weighing in at just under 29 lbs., the EMP 210 is lightweight but is capable of MIG welding 3/8″ thick material in a single pass. It features advanced functions like adjustable MIG wire run-in and burn back settings, with digital controls. It also comes spool gun ready, which means you can tackle aluminum MIG welding jobs with OPTIONAL Tweco® 160 amp spool gun.
The EMP 210’s true multi-process capabilities include lift arc DC TIG for the TIG welding of steel and stainless steel. For stick welding applications, it handles up to 5/32″ diameter stick welding electrodes.
The EMP 210 comes complete with digital meter, ten foot Tweco® Fusion® 180 MIG gun, Tweco® 17V TIG torch with 50 mm Dinse connector and TIG accessory kit, shielding gas flow regulator with hose, work cable with clamp, input power cable with 120V/230V adapter and ESAB’s 3-year warranty.
Process
MIG (GMAW)
Flux-cored (FCAW)
DC TIG (GTAW)
Stick (SMAW)Applications Automotive Agricultural Equipment Civil Construction Repair and Maintenance Light Fabrication HVAC
Features
Dual voltage input supply – flexibility to use anywhere on single phase 120V/230V input power
30 – 200A output; welds material from 22 gauge up to 3/8 in. in a single pass; accepts 4 and 8 in. diameter wire spools
Advanced functions typically found on industrial machines: MIG wire run-in, burn-back, variable inductance, 2T/4T trigger control.
Portability and flexibility to weld in a variety of locations. Both units weigh just under 29 lbs, connect to 120/230V primary power, and are compatible with 10 kVa generators.
Spool Gun ready for aluminum MIG welding with OPTIONAL Tweco® 160 amp spool gun.
This is a DC only machine. It cannot TIG weld Aluminum
ESAB’s industry-leading service and support means that if you do need help with your welder, you will be protected. 100% SATISFACTION GUARANTEE means that if there’s anything you’re not completely satisfied with in your first 100 days with your new welder, ESAB will make it right, even if it means giving you your money back. It’s all part of ESAB’s Iron Clad Pledge to its customers.

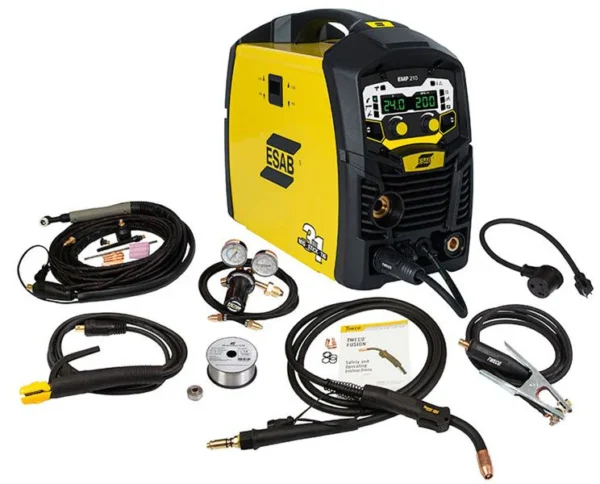

Comes Complete With:
EMP 210 multi-process MIG/Stick/DC TIG welder
10 ft. Tweco® Fusion® 180 MIG gun with Velocity®consumables
Tweco® 17V TIG torch w/13 ft. leads, remote amperage control and 50mm Dinse connector
TIG accessory kit
Victor® Argon/CO2regulator with hose
Tweco® electrode holder with heavy duty 50 mm Dinse connection
Tweco® ground clamp with heavy duty 50 mm Dinse connection
50A-15A (120/230V) power adapter
Sample wire spool of ESAB OK AristoRod 12.50 mild steel MIG wire (2#)
