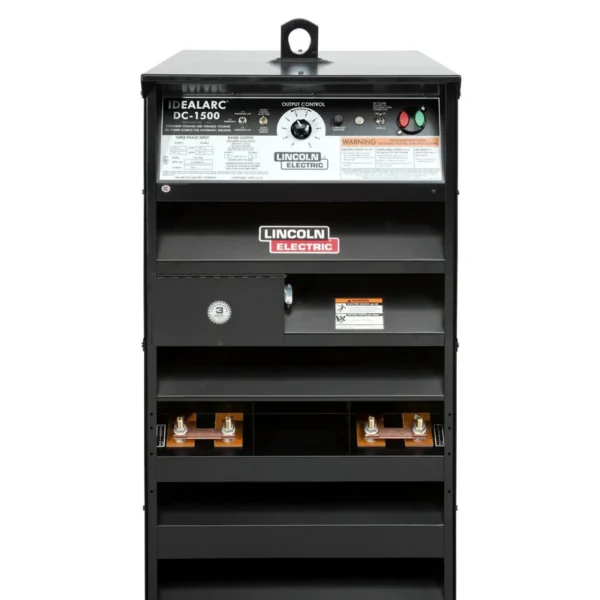

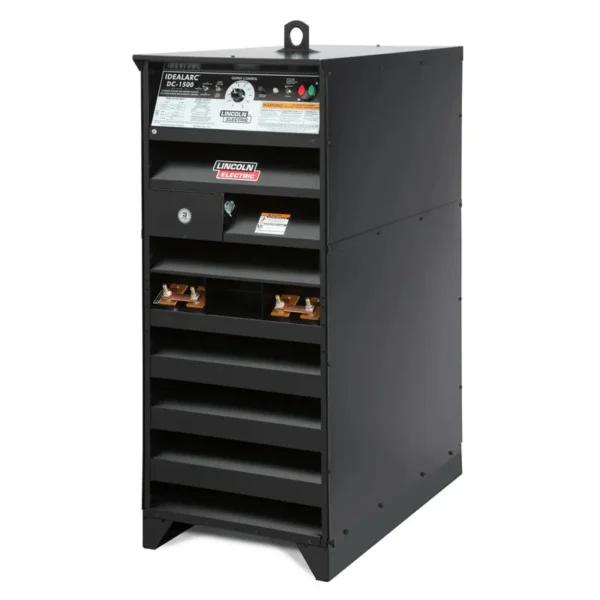

Lincoln Idealarc DC-1500 Submerged Arc Welder

Product Overview
The Lincoln Idealarc DC-1500 is a high-performance, industrial-grade DC arc welding power source built for demanding automated welding applications where consistency and reliability are critical. Offering both constant voltage and constant current configurations, this versatile unit delivers exceptional arc characteristics across submerged arc and flux-cored welding processes, ensuring superior weld quality and productivity on a wide range of materials and joint types.

Engineered for seamless integration with Lincoln automation systems, the DC-1500 works perfectly with NA-3 and NA-5 automatic wire feeders or the LT-7 tractor. Its single-range output control potentiometer enables precise adjustment across the entire output range, while the process mode selection switch allows quick configuration for different welding procedures. This combination of versatility and user-friendly controls makes the DC-1500 ideal for manufacturing environments requiring multiple welding processes with minimal operator intervention.

Built to endure harsh industrial environments, the DC-1500 features solid-state circuitry, fan cooling, electronic monitoring, and line voltage compensation (±10%) to maintain consistent weld performance. Enhanced protection for windings and rectifiers ensures reliable operation even in moisture-prone or corrosive conditions. The system also includes eight-amp fuse-protected 115V auxiliary power for wire feeders. Backed by Lincoln’s robust warranty—three years on parts and labor plus a seven-year warranty on the power rectifier—the DC-1500 exemplifies Lincoln’s commitment to quality, reliability, and long-term performance.

Key Features

• Multi-process DC arc welding power source for constant voltage and constant current operations.
• Optimized for submerged arc and flux-cored welding applications.
• Single-range output control potentiometer for precise power adjustment.
• Compatible with Lincoln NA-3 and NA-5 automatic wire feeders and LT-7 tractor for automated welding.
• Line voltage compensation for consistent performance despite ±10% input fluctuations.
• Fan cooling and electronic/thermostatic protection against overload and high temperatures.
• Diagnostic function lights for easy troubleshooting and reduced downtime.
• Enhanced protection of windings and rectifiers against moisture and corrosive environments.
• Eight-amp fuse-protected 115V auxiliary power for wire feeders.
• Warranty: three years on parts and labor, seven years on power rectifier.

If you want, I can also create a short, SEO-friendly version suitable for your MetalMeldMachines.com product listing that highlights its main selling points for customers. Do you want me to do that?

Specifications

Dimensions (H x W x D)	57.2 in x 22.3 in x 38 in (1453 mm x 566 mm x 965 mm)
Net Weight	1420 lbs (644 kg)

Machines Processes	Gouging (CAC-A) Submerged Arc (SAW)
Input Voltage	460
Input Current	184A
Input Hertz	60
Input Phase	3
Input Power	460/3/60
Mode Icon	CC/CV
Output Range	200-1500A DC,20-60V
Polarity	DC

Machines Communication Technology	analog
Wire Feeder Supply Voltage	115VAC
Amphenol Pins (type of connector)	Terminal Strip
Work Lead Connector Type	Lug

Typical Application

Heavy Fabrication

Warranty

4 Years
