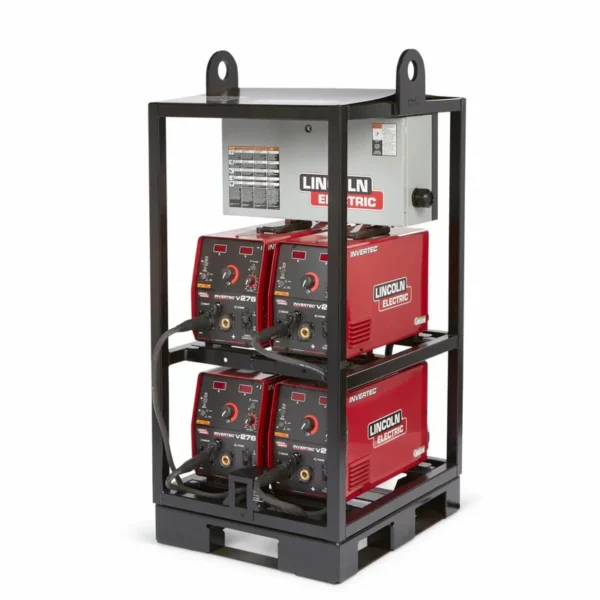

Lincoln Invertec V276 4-Pack Rack

Product Overview

The Lincoln Invertec V276 4-Pack Rack is a rugged, industrial-grade rack system designed to group multiple inverter power sources into a single, portable solution for construction sites and demanding welding environments. Engineered for efficiency, mobility, and reliability, this system allows welding crews to deploy multiple power sources quickly while maintaining the trusted performance associated with Lincoln Electric equipment.

At the core of the system is a centralized power distribution panel that enables all four Invertec V276 power sources to operate from one primary power drop, greatly simplifying electrical setup and reducing cable congestion on the jobsite. The heavy-duty rack frame is built for transport and flexibility, featuring two overhead lifting eyes and two forklift pockets, with an optional heavy-duty caster kit available for easy movement around the work area. Each power source is protected by its own individual fuse, ensuring proper overcurrent protection and preventing system-wide disruption in the event of a single-unit fault.

All power sources arrive factory-installed and pre-wired to the main power distribution panel, eliminating lengthy installation procedures and allowing for fast deployment upon delivery. Included work leads and a common ground connection further streamline setup, providing a ready-to-weld solution that minimizes downtime and maximizes productivity. The Invertec V276 4-Pack Rack reflects Lincoln Electric’s commitment to delivering practical, high-performance welding systems tailored to real-world jobsite and structural welding demands.

---

What’s Included

• (4) Invertec® V276 (Tweco®) Power Sources – K4868-1
• (4) Work Leads
• Common Work Stud
• Stud Cover
• Rack and Power Distribution Panel

---

Key Features

• Single Power Connection: One primary power drop supplies all four power sources
• Enhanced Portability: Two overhead lifting eyes, two forklift pockets, and optional heavy-duty casters
• Complete Setup: Work leads and a common ground are included
• Individual Overcurrent Protection: Dedicated fuses for each power source
• Factory Assembled: Power sources are pre-installed and wired to the main distribution panel



Specifications

Dimensions (H x W x D)	59 in x 37.5 in x 32.88 in (1500 mm x 952 mm x 835 mm)
Net Weight	644 lbs (292 kg)

Machines Processes	Stick (SMAW) Gouging (CAC-A) TIG (GTAW)
Input Voltage	208/230/380/415/460/575 VAC
Input Hertz	50/60 Hz
Input Phase	3 Phase
Output Range	20-275 A

Amphenol Pins (type of connector)	6
Work Lead Connector Type	Tweco

Typical Application

Construction Structural Welding

Warranty

4 Years Standard
