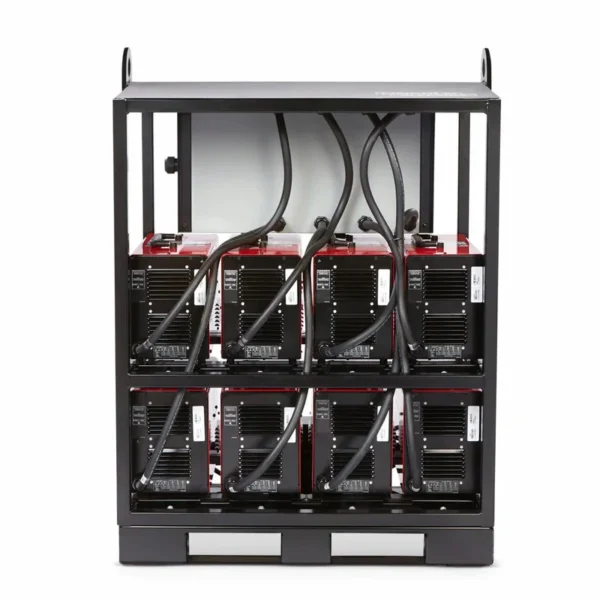

Lincoln Invertec V276 8-Pack Rack

Product Overview

The Lincoln Invertec V276 8-Pack Rack – K4869-2 delivers a rugged, industrial-grade solution for efficiently managing multiple inverter power sources in demanding construction, fabrication, and field welding environments. Designed to improve portability, simplify installation, and keep work areas organized, this integrated rack system groups eight Invertec V276 power sources into one compact, job-ready package—streamlining power distribution and maximizing productivity across multiple welding stations.

A single primary power connection supplies all eight units through one power drop, significantly reducing setup time and eliminating excess cabling on the jobsite. Built for durability and ease of transport, the rack features two overhead lifting eyes, two forklift pockets, and provisions for optional heavy-duty casters, allowing safe and efficient relocation as job conditions change. Each inverter is protected by an individual fuse, providing dedicated overcurrent protection to enhance safety and maintain reliable performance during high-demand operations.

The system arrives fully assembled, with all power sources factory-installed and pre-wired to a centralized power distribution panel for rapid deployment. Included work leads and a common ground complete the package, delivering a true ready-to-weld solution that minimizes downtime and keeps crews focused on production rather than setup.

---

What’s Included

• (8) Invertec® V276 (Tweco®) Power Sources – K4868-1
• (4) Work Leads
• Common Work Stud
• Stud Cover
• Rack and Power Distribution Panel

---

Key Features

• Single Power Connection: One primary power drop supplies all eight power sources
• Enhanced Mobility: Two overhead lifting eyes, two forklift pockets, and optional heavy-duty casters
• Complete System Setup: Includes work leads and a common ground
• Individual Overcurrent Protection: Dedicated fuses for each power source
• Factory Assembled: Power sources are pre-installed and pre-wired for fast deployment
• Industrial-Grade Construction: Built to withstand harsh jobsite and field conditions

Specifications

Dimensions (H x W x D)	14 in x 10.2 in x 18.6 in (357 mm x 258 mm x 472 mm)
Net Weight	64 lbs (29.03 kg)

Input Voltage	115/208/230
Input Current	20A
Input Hertz	60
Input Phase	1
Input Power	115/208/230/1/60
Mode Icon	CV
Output Range	120V: 30-140 A 230V: 30-180 A
Polarity	DC

Typical Application

Automotive Brewery Distillery General Fabrication Maintenance & Repair

Warranty

3 Years
