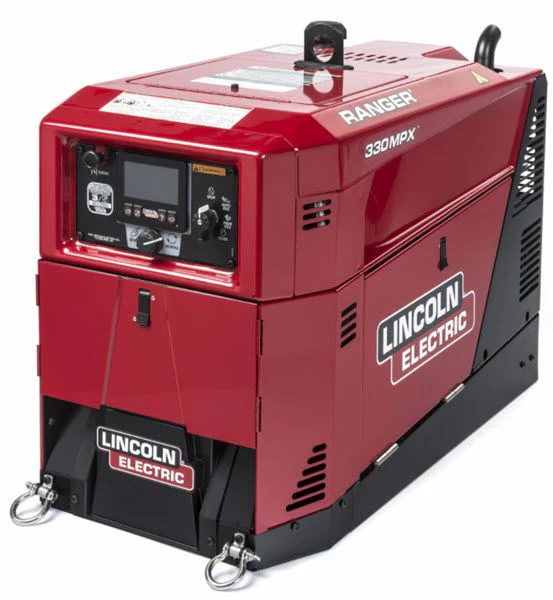

The Lincoln® Ranger® 330MPX™ is a 330 amp DC welder and 11,000 watt AC generator. It is capable of Stick, DC touch-start TIG and DC pulsed TIG welding, plus MIG and Flux-Cored welding with OPTIONAL LN-25X® series voltage sensing wire feeder.
The Lincoln® Ranger® 330MPX™ is a 330 amp DC welder and 11,000 watt AC generator. It is capable of Stick, DC touch-start TIG and DC pulsed TIG welding, plus MIG and Flux-Cored welding with OPTIONAL LN-25X® series voltage sensing wire feeder. Built-in CrossLinc® technology means the Ranger 330MPX communicates directly with your LN-25X wire feeder through your welding leads for full remote amperage and voltage control without the use of a separate remote-control cable.

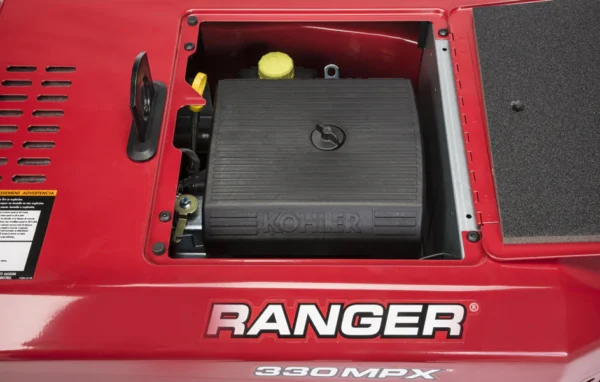

The Ranger 330MPX produces up to 11,000 peak watts of single-phase AC auxiliary power. Its compact size is up to 20% smaller than similar welders in its class, leaving more room for tools and equipment in your truck bed. The Kohler® CH740 two-cylinder gasoline engine produces 25 horsepower at 3,600 RPM and yet is up to 60% quieter than other welders in its class.
Processes
Stick (SMAW)
MIG (GMAW)
Flux-cored (FCAW)
DC TIG (GTAW)
Air Carbon Arc Gouging with 3/16″ carbonsApplications Construction Maintenance & Repair Service Truck Rental Pipeline Welding
Features:
Smaller Size – Up to 20% smaller footprint than other machines in its class Up to 25% lighter making it easier to maneuver around the job site Up to 31% smaller in volume than other machines in its class
Quiter Sound Up to 60% quieter than other machines in its class Engineered to enhance operator comfort and safety

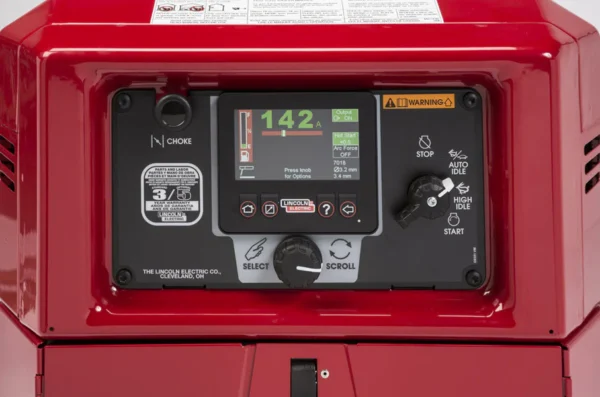

Ready.Set.Weld® intuitive push-and-turn digital controls make setup a breeze
Maintenance Alerts keep track of engine functions and provide real-time data and notifications when service is required. The maintenance screen clearly displays hours remaining, and settings can be customized to issue alerts at preferred intervals
Chopper Technology® feature provides easy starts, a smooth and consistent arc, and low spatter for optimal bead appearance
ArcFX® technology provides instant graphical feedback on how settings affect the weld outcome
CrossLinc® remote technology communicates voltage control to the welding power source through one common weld cable
HIGH QUALITY OPERATIONS Clean AC generator with 10 kW of continuous, consistent power to keep tools running without interruptions New engine driven weld modes: downhill pipe, touch-start pulse TIG, and pulse spool gun Plenty of power at 330A/28V for 100% duty cycle to weld 1/4 in. 7018 electrode Fine tune adjustments available on: hot start, arc force, and pinch controls Arc gouging capabilities up to 3/16″ carbon electrode

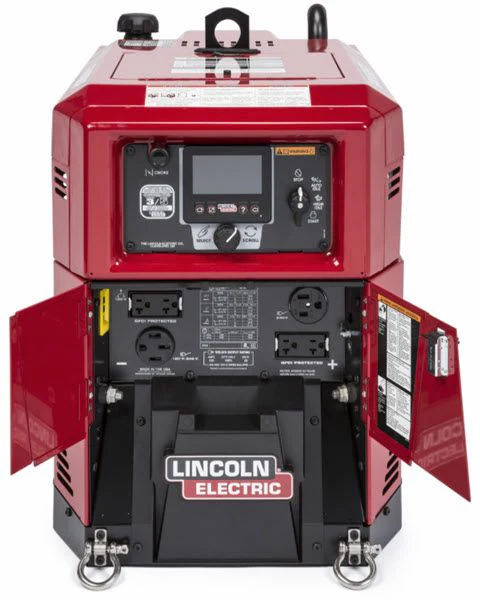

11,000 Watts Peak Single-Phase AC Generator Power Peak for motor starting. 10,000 watts continuous power for generator, plasma cutter or inverter welder. Lights, grinder, power tools.
Rugged Reliability Welding and AC generator outputs rated at 104F (40C).
Comes complete with
Ranger® 330MPX welder with Kohler® OHV Command CH740 gasoline engine.
PLUS get a $1000 VISA® gift card from Lincoln® with the purchase of this Ranger® 360MPX™ welder. Rebate form must be submitted online HERE no later than 30 days after purchase. While supplies last.
