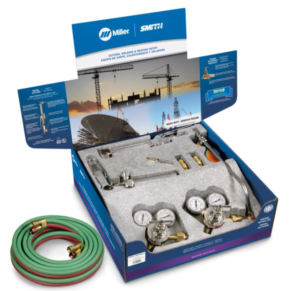

Miller Heavy Duty Torch Outfit with Acetylene Tips, CGA 510 #HBA-30510
WHAT’S INCLUDED
Torch Handle (WH200A)
Safety Glasses (78000)
Cutting Attachment (SC209)
Oxygen Regulator(30-100-540)
Acetylene Regulator (30-15-510)
Cutting Tip (SC12-1)
Welding Tip (SW205)
Heating Tip (ST602)
25-ft 1/4″ Twin Hose (RL1131)
Friction Lighter (16571)
Tip cleaner (16570)
Torch Mount Flashback Arrestors (H743)
Operations Manual
FEATURES
Double-Tube Handle – Tube-within-a-tube design provides strength while reducing weight.
Internal Threads – Threads are protected from damage if torch is dropped.
Adjustable Valve Resistance – PTFE packing provides a gas-tight seal while allowing the “drag” to be adjusted to the individual preference.
Replaceable Hose Connections – Connections are easily replaced if damaged reducing maintenance costs.
Flo-Trol™ Valve – Eliminates seat burn out due to reverse flow of mixed gases.
Center Pre-Heat Valve – Usage for both left and right-handed operators.
Dual Filters Including Sure Seat™ – The regulator dual filter design protects the high-pressure seat from debris for reliable operation and long service life.
External Relief Valve – Protects regulator from damage due to inadvertent high-pressure surge. Relief valve will release excessive pressure and automatically reset.
Neoprene Composite Diaphragm – Resists corrosion for extended service life.
Graf-Tite® Soft Seat Tip – Protects the tip seat from nicking for longer use. Learn More
SC12 Series Heavy Duty Cutting Tips – Preheat cutting tips for general hand and machine cutting with acetylene gas. This series provides excellent preheat characteristics required for machine cutting. SC12-1 can cut from 1/2 in. (13mm) to 5/8 in. (16mm) thick metal.
SW200 Series Heavy Duty Welding Tip – The SW200 series is for general and heavy welding and brazing with acetylene gas. Swaged construction provides greater heat concentration for improved “puddle” control. . SW205 can weld up to 1/8 in. (3mm) thick metal.
Heavy Duty Cutting Attachment – Cuts up to 8-inch (203 mm) thick steel.
Silver-Brazed Connections – For extra protection, strength and leak resistance.
Nickel-Plated Finish – Deflects heat and resists corrosion.
Riveted Knobs – Will not come loose from the valve stem.
Stainless Steel Ball-Style Valves – Allows for smooth adjustment and positive seating to eliminate leaks.
Slip-in Tip Design – No wrench is needed allowing for quick and easy tip changes. Learn More
Three Tube Construction – Keeps gases separate in the cutting attachment until mixed at the tip for safety. Mixed gas stays farthest away from the operator.
Triple O-Ring Seal – For easy 360-degree torch head rotation to reduce operator fatigue.
Nickel-Plated Bonnet with Forged Brass Body – Protects against corrosion.
2-Inch Regulator Gauges – The large regulator gauges are easy to read and are constructed from shatter-resistant polycarbonate lenses.
